水星4G無線路由器MB110-4G

燈號指示：

 Insert the Nano SIM card into
the slot until you hear a click.

Connect the power adapter to the router

• LTE:
Download Speed 150 Mbps +Upload Speed 50 Mbps‡
• Ports:
1× 10/100 Mbps LAN/WAN +1× 10/100 Mbps LAN
2×4G/3G External Antenna Ports
• Antennas:
2 Internal 4G LTE Antennas
• Dimensions:
3.5×3.5×5.9 in (90×92×150.5 mm)
• External Power Supply:
9V/0.85A

• Network Type (EU):
4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE B38/B40 (2600/2300 MHz)
3G: HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
• Network Type (UN):
4G: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28/B66
(2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE B40 (2300MHz)
3G: HSPA+/HSPA/UMTS B1/B2/B4/B5/B8(2100/1900/1700/850/900 MHz)
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps
• EIRP (CE): < 20 dBm (2.4 GHz)
• Reception Sensitivity:
11g 54M: -74dBm
11N HT20 MCS7: -73dBm
11N HT40 MCS7: -70dBm
• Wireless Function:
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
• Wireless Security:
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

登入mwlogin.net

設定密碼

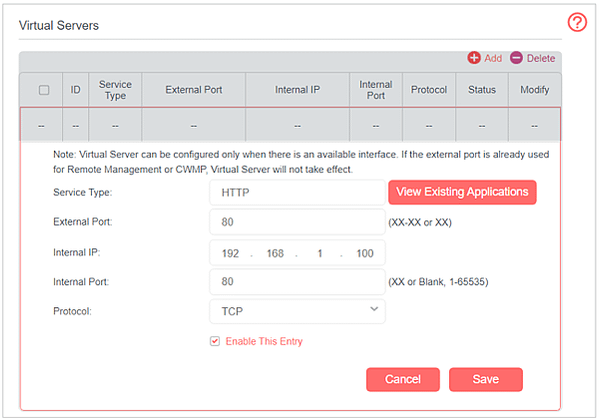

虛擬伺服器：
